sortiment/olympia | Barthelme Website

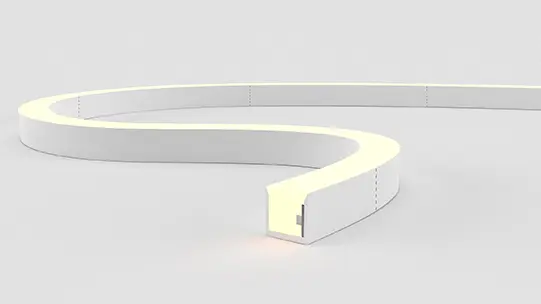

Horizontal biegbar

Ideal für kreisförmige Geometrien, Bögen und radiale Konturen in der Fläche.

Single Color

SF33 Mono 24V 15W/m

Masse
(B x H mm)

Voltage

Artikelname

Artikel Nr

Max Run
Length

10 x 10

24V

SF08 Mono 24V 10W/m

SF08-24V-2835-120

x

5m

24V

SF08 Mono 24V 2LEDs/Unit

SF08-24V-2835-120-U2

x

5m

48V

SF08 48V 120LEDs/m

SF08-48V-2835-120

x

15m

16.5 x 16.5

24V

SF17 Mono 24V 10W/m

SF17-24V-2835-120

x

10m

24V

SF17 Mono 24V 2LEDs/Unit

SF17-24V-2835-120-U2

x

10m

24V

SF17 Mono 24V 8W/m 128LEDs

SF17-24V-2835-128

x

10m

24V

SF17 Mono 24V 10W/m 144LEDs

SF17-24V-2835-144

x

10m

48V

SF17 Mono 48V 140LEDs/m

SF17-48V-3528-140-V1

x

20m

48V

SF17 Mono 48V 5W/m 84LEDs

SF17-48V-2835-84-CC

x

50m

22 x 22

24V

SF33 Mono 24V 10W/m

SF33-24V-3528-144

x

10m

24V

SF33 Mono 24V 15W/m

SF33-24V-5050-84

x

84

48V

Ultra Long SF33 Mono 48V 2W/m

SF33-48V-2835-96-CC-2W

x

152m

48V

Ultra Long SF33 Mono 48V 5W/m

SF33-48V-2835-96-CC-5W

x

92m

48V

Ultra Long SF33 Mono 48V 12W/m

SF33-48V-2835-96-CC-12W

x

55m

22 x 22
48V

SF33 Mono 48V 9W/m

SF33-48V-3528-140

x

20m

Tunable White

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	2200K+5700K	2700K+5700K	3000K+5700K	Max Run Length
16.5 x 16.5	24V	SF17 Tunable White 24V 12W/m	SF17-24V-2835-120-DW	x	x	x	10m
22 x 22	24V	SF33 Tunable White 24V 12W/m	SF33_24V_2835_120_DW	x	x	x	10m

RGB

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	Rot	Grün	Blau	Max Run Length
16.5 x 16.5	24V	SF17 Multi RGB 24V	SF17-24V-5050-72-RGB	x	x	x	10m
	48V	SF17 Multi RGB 48V	SF17-48V-5050-84-RGB	x	x	x	20m
22 x 22	24V	SF33 Multi RGB 24V	SF33-24V-5050-72-RGB	x	x	x	10m
	48V	SF33 Multi RGB 48V	SF33-48V-5050-84-RGB	x	x	x	20m

RGB+W

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	Rot	Grün	Blau	W 3000K	Max Run Length
16.5 x 16.5	12V	SF17 Multi RGBW 12V 72LEDs	SF17-12V-5050-72-RGBW	x	x	x	x	5m
	24V	SF17 Multi RGBW 20W/m	SF17-24V-5050-84-RGBW-V1	x	x	x	x	7m
19 x 22	48V	SF17 Multi RGBW 48V	SF17-48V-5050-84-RGBW	x	x	x	x	14m
22 x 22	24V	SF33 Multi RGBW 24V	SF33-24V-5050-72-RGBW	x	x	x	x	8m
	48V	SF33 Multi RGBW 48V	SF33-48V-5050-84-RGBW	x	x	x	x	14m

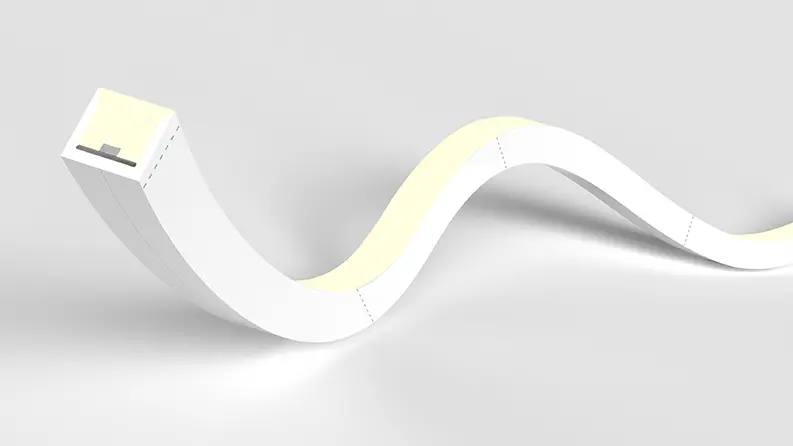

Vertikal biegbar

Ermöglicht geschwungene Linienführungen, Wellenstrukturen und dynamische Höhenverläufe.

Single Color

Masse (B x H mm)

Voltage

Artikelname

Artikel Nr

Max Run
Length

10 x 10

24V

SF06 Mono 24V 10W/m

SF06-24V-2835-120

x

5m

24V

SF06 Mono 24V 2LEDs/Unit

SF06-24V-2835-120-U2

x

5m

48V

SF06 Mono 48V 120LEDs/m

SF06-48V-2835-120

x

15m

16.5 x 16.5

12V

SF16 Mono 12V 84LEDs

SF16-12V-5050-84

x

5m

24V

SF16 Mono 24V 10W/m

SF16-24V-3528-144

x

10m

24V

SF16 Mono 24V 10W/m

SF16-24V-2835-120

x

10m

24V

SF16 Mono 24V 10W/m (U2)

SF16-24V-2835-120-U2

x

10m

24V

SF16 Mono 24V 84LEDs

SF16-24V-5050-84

x

8m

24V

SF16 Mono 24V 8W/m

SF16-24V-2835-128

x

10m

24V

SF16 Mono 24V 9W/m

SF16-24V-3528-120

x

10m

24V

SF16 Mono CC 24V 10W/m

SF16-24V-3528-120-CC

x

15m

48V

SF16 Mono 48V 9W/m

SF16-48V-3528-140

x

20m

48V

SF16 Ultra Long 48V 12W/m

SF16-48V-2835-96-CC-12W

x

55m

48V

SF16 Ultra Long 48V 2W/m

SF16-48V-2835-96-CC-2W

x

152m

48V

SF16 Ultra Long 48V 5W/m

SF16-48V-2835-96-CC-5W

x

92m

19 x 22

24V

SF34 Mono 24V 10W/m

SF34-24V-3528-144

x

10m

24V

SF34 Mono 24V 15W/m

SF34-24V-5050-84

x

8m

48V

SF34 Mono 48V 9W/m

SF34-48V-3528-140

x

20m

48V

SF34 Ultra Long Mono 48V 2W/m

SF34-48V-2835-96-CC-2W

x

171m

48V

SF34 Ultra Long Mono 48V 5W/m

SF34-48V-2835-96-CC-5W

x

110m

48V

SF34 Ultra Long Mono 48V 12W/m

SF34-48V-2835-96-CC-12W

x

Tunable White

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	1800K	3000K	2200K+5700K	2700K+5700K	3000K+5700K	Max Run Length
16.5 x 16.5	24V	SF16 Dim to Warm	SF16-24V-2835-120-DTW	x	x				10m
	24V	SF16 Tunable White 24V 12W/m	SF16-24V-2835-120-DW			x	x	x	10m
19 x 22	24V	SF34 Tunable White 24V 12W/m	SF34-24V-2835-120-DW			x	x	x	10m

RGB

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	Rot	Grün	Blau	Max Run Length
16.5 x 16.5	24V	SF16 Multi RGB 24V	SF16-24V-5050-72-RGB	x	x	x	10m
	48V	SF16 Multi RGB 48V	SF16-48V-5050-84-RGB	x	x	x	20m
19 x 22	24V	SF34 Multi RGB 24V	SF34-24V-5050-72-RGB	x	x	x	10m
	48V	SF34 Multi RGB 48V	SF34-48V-5050-84-RGB	x	x	x	20m

RGB+W

Masse (B x H mm)

Voltage

Artikelname

Artikel Nr

Rot

Grün

Blau

3000K

Amber

Max Run Length

16.5 x 16.5

12V

SF16 Multi RGBW 12V 72LEDs

SF16-12V-5050-72-RGBW

x

5m

24V

SF16 Multi RGBW 24V 72LEDs

SF16-24V-5050-72-RGBW

x

8m

24V

SF16 Multi RGBW 24V 84LEDs

SF16-24V-5050-84-RGBW-V1

x

7m

24V

SF16 Multi RGBX

SF16-24V-3535+2835-60-RGBX

x

8m

48V

SF16 Multi RGBW 48V 84LEDs

SF16-48V-5050-84-RGBW

x

14m

19 x 22

24V

SF34 Multi RGBW 24V 72LEDs

SF34-24V-5050-72-RGBW

x

8m

48V

SF34 Multi RGBW 48V 84LEDs

SF34-48V-5050-84-RGBW

x

14m

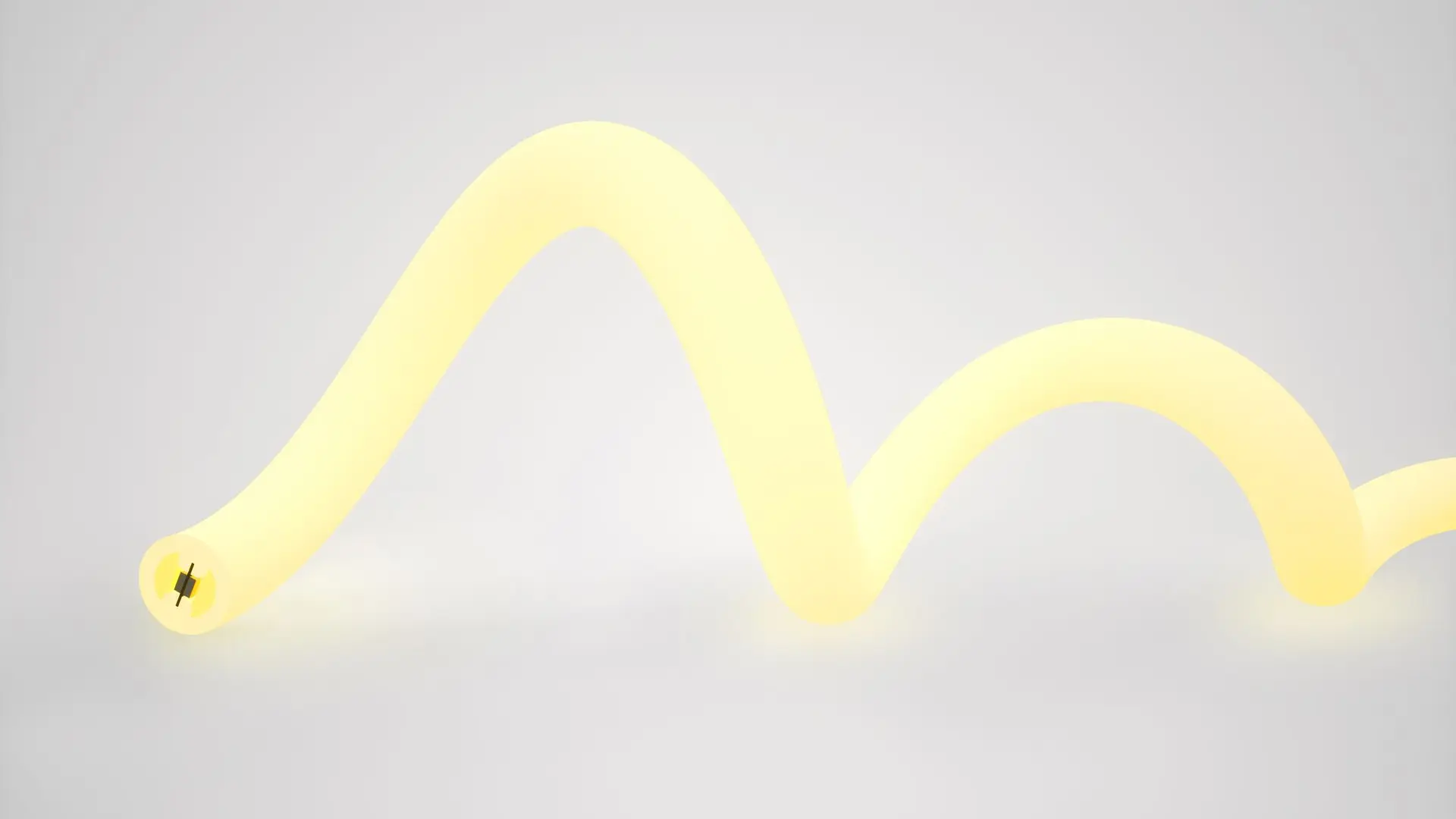

360°

Rundum abstrahlend – homogene Lichtverteilung in alle Richtungen, ideal für freistehende Anwendungen.

Single Color

Masse (B x H mm)

Voltage

Artikelname

Artikel Nr

Max Run Length

24mm Ø

24V

SF24 Mono Color 4LED/Unit

SF24-24V-2835-288-U2

x

10m

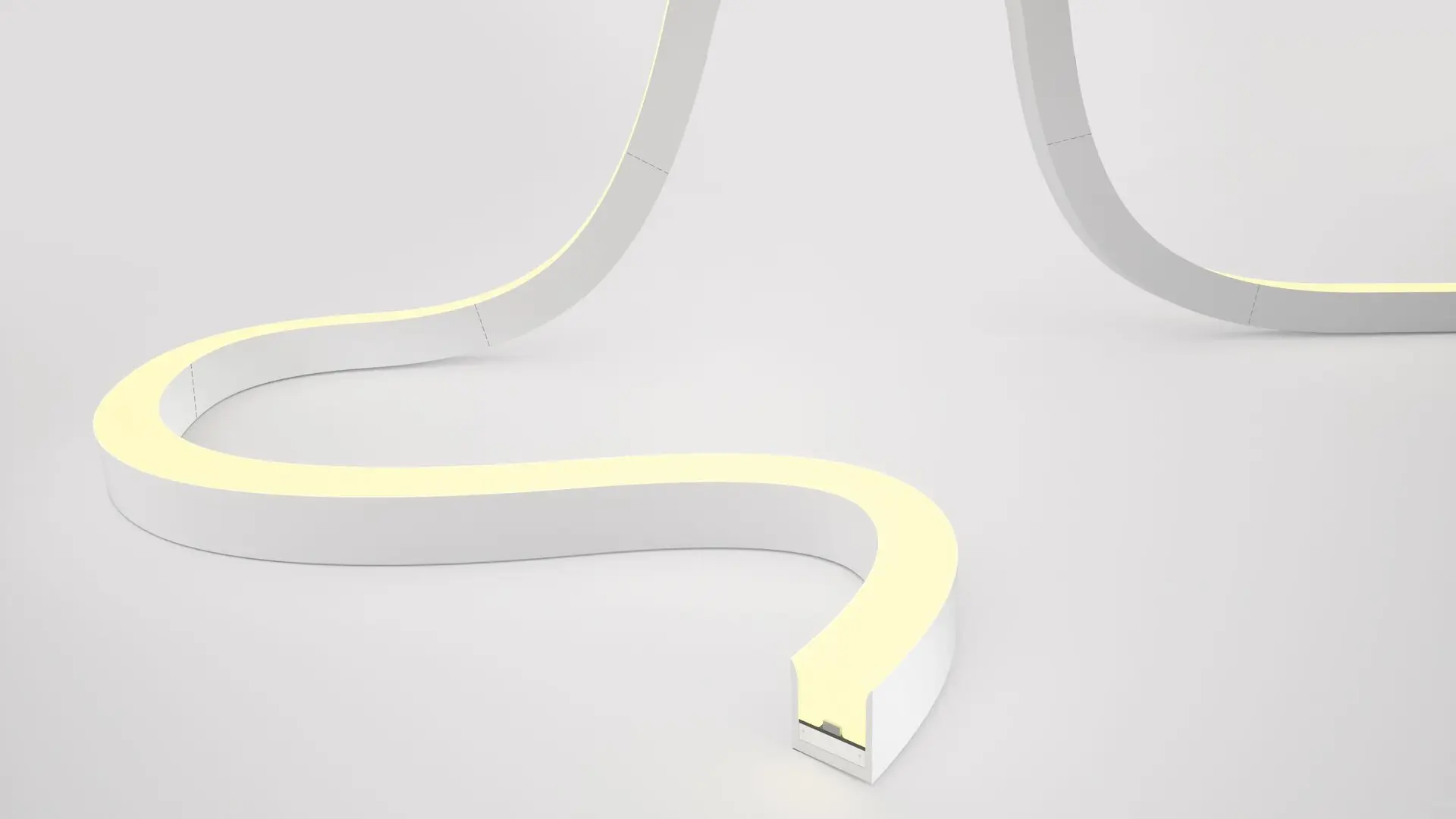

3D

Volle Gestaltungsfreiheit für komplexe Raumgeometrien und organische 3D-Formen.

Single Color

Masse (B x H mm)

Voltage

Artikelname

Artikel Nr

Max Run
Length

18 x 16.5

24V

SF28 Mono 13W/m

SF28-24V-5050-72

x

7m

19 x 18

24V

SFW20 Mono Color

SFW20-24V-3535-24-CC

x

5m

Tunable White

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	2200K+5700K			Max Run Length
19 x 18	24V	SFW20 Tunable White	SFW20-24V-3535-24-DW	x			5m

RGB

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	Rot	Grün	Blau	Max Run Length
19 x 18	24V	SFW20 RGB	SFW20-24V-3535-24-RGB	x	x	x	4m

RGB+W

Masse (B x H mm)	Voltage	Artikelname	Artikel Nr	Rot	Grün	Blau	W	Max Run Length
19 x 18	24V	SFW20 Multi RGBW	SFW20-24V-3535-24-RGBW	x	x	x	x	3.5m
